特 點 Features

● PCB線路板安裝。PCB board installation.

● 體積緊湊。It's compact.

應 用 Application

● 各種模塊電源與小型電子儀器AC或DC側。

Various module power supply and small electronic

instrument AC or DC side.

性能指標 Characteristcs

產品型號表 Filter Table

型號 model	接線方式：輸入輸出		額定電流A Rated curren	MAX泄漏電流mA leakage current	放電電阻KΩ resistance	電路圖Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-211-1-	P	P	1	0.5		1	1
YX-211-3-	P	P	3	0.5		1	2
YX-211-6-	P	P	6	0.5		1	2
YX-211-10-	P	P	10	0.5	1000	2	3
YX-221-16-	P	P	16	0.5	1000	2	3

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

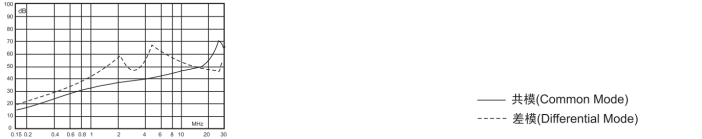

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

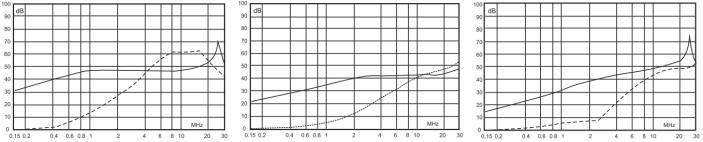

1A 3A 6A

10A~16A

外形尺寸圖 Outline Drawing : mm

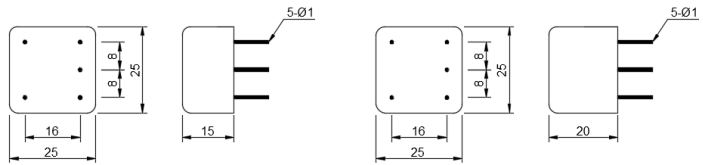

Fig.1 (1A) Fig.2( 3A~6A)

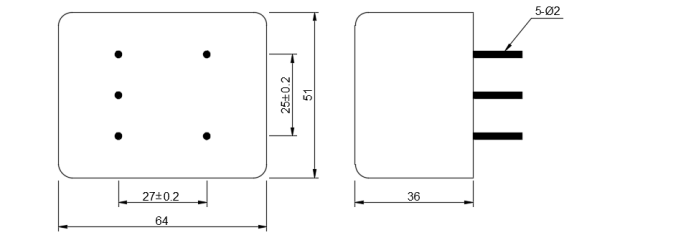

Fig.3 (10A~16A)
