                    產品中心                      饋通式濾波器  交流、直流饋通濾波器

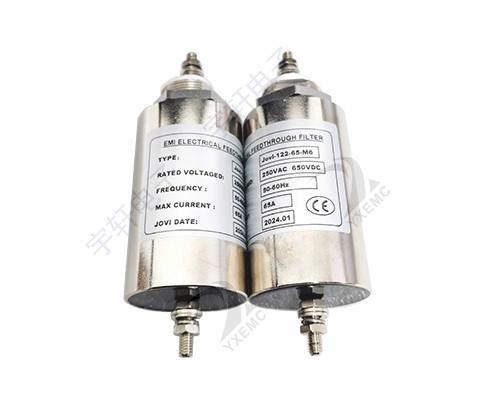

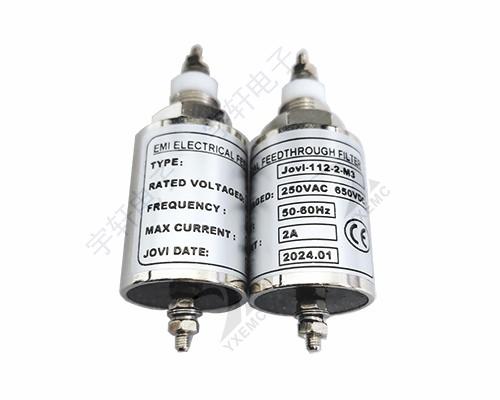

          交流、直流饋通濾波器
          交流、直流饋通濾波器
          交流、直流饋通濾波器
          交流、直流饋通濾波器
          交流、直流饋通濾波器
          交流、直流饋通濾波器
          交流、直流饋通濾波器
          ● 貫穿艙壁安裝
          ● 極低內部串聯電感、自愈電介質
          ● 從KHz到GHz頻率范圍內提供高插入損耗
          產品詳情
          特  點 Features
          ● 貫穿艙壁安裝Through bulkhead installation
          ● 極低內部串聯電感、自愈電介質Very low internal series inductance, self healing dielectric
          ● 從KHz到GHz頻率范圍內提供高插入損耗Extremely low internal series inductors
          self-healing dielectrics provide high insertion loss in the frequency range from kHz to GHz

          應  用 Application
          ● 開關電源、UPS電源Switching power supply, UPS power supply
          ● 交換機、通信基站Switch, communication base station
          ● 醫療設備Medical equipment      屏蔽室Shielding room

          性能指標 Characteristcs
          額定電壓Rated voltage/工作頻率Operating Frequency
          130VAC   50/60HZ
          300VAC   50/60HZ
          蕞大直流額定電壓Max DC rated voltage
          650VDC
          1000VDC
          電容器等級Capacitor rating
          Y4
          Y2
          耐壓試驗Test Voltage
          1700VDC/2S
          3000VDC/2S
          氣候類別Climate category
          40/100/21

          典型電氣原理圖 Typical electrical schematic

          Fig.1  典型電氣原理圖Fig.20c9ac42513f537eb8e165b6f2b07b0f.png


          產品型號表 Filter Table
          型號
          model
          額定電壓
          Rated voltage
          額定電流A
          Rated curren
          電容量nF
          Capacitance
          電感量nH
          Inductance
          電路圖
          Circuit diagram
          YX-114-10-M3
          130VAC
          10
          10
          /
          Fig.1
          YX-114-16-M4
          130VAC
          16
          470
          /
          Fig.1
          YX-114-32-M4
          130VAC
          32
          470
          /
          Fig.1
          YX-114-63-M6
          130VAC
          63
          100
          /
          Fig.1
          YX-114-100-M8
          130VAC
          100
          1000
          /
          Fig.1
          YX-112-10-M3
          300VAC
          10
          4.7
          /
          Fig.1
          YX-112-16-M4
          300VAC
          16
          100
          /
          Fig.1
          YX-112-32-M4
          300VAC
          32
          33
          /
          Fig.1
          YX-112-63-M6
          300VAC
          63
          10
          /
          Fig.1
          YX-112-100-M8
          300VAC
          100
          100
          /
          Fig.1
          YX-124-10-M3
          130VAC
          10
          100
          70
          Fig.2
          YX-124-16-M4
          130VAC
          16
          100
          70
          Fig.2
          YX-124-32-M4
          130VAC
          32
          100
          70
          Fig.2
          YX-124-63-M6
          130VAC
          63
          470
          186
          Fig.2
          YX-124-100-M8
          130VAC
          100
          1000
          186
          Fig.2
          YX-122-10-M3
          300VAC
          10
          47
          70
          Fig.2
          YX-122-16-M4
          300VAC
          16
          100
          70
          Fig.2
          YX-122-32-M4
          300VAC
          32
          100
          70
          Fig.2
          YX-122-63-M6
          300VAC
          63
          470
          124
          Fig.2
          YX-122-100-M8
          300VAC
          100
          1000
          124
          Fig.2

          外形尺寸圖 Outline Drawing : mm

          交流饋通濾波器直流饋通濾波器

          型號model
          A
          B
          C
          D
          E
          L
          M
          N
          S
          T
          YX-114-10-M3
          57
          10
          15
          13
          16
          19
          /
          ?10.3
          M3
          M10X1
          YX-114-16-M4
          82
          16
          32
          27
          18
          33
          18.3
          ?20.3
          M4
          M20X1
          YX-114-32-M4
          82
          16
          32
          27
          18
          33
          18.3
          ?20.3
          M4
          M20X1
          YX-114-63-M6
          96
          14
          25
          22
          26
          30
          14.3
          ?16.3
          M6
          M16X1
          YX-114-100-M8
          133
          19
          38
          27
          32
          50
          22.3
          ?24.3
          M8
          M24X1
          YX-112-10-M3
          57
          10
          17
          13
          16
          20
          /
          ?10.3
          M3
          M10X1
          YX-112-16-M4
          77
          14
          27
          22
          18
          31
          14.3
          ?16.3
          M4
          M16X1
          YX-112-32-M4
          75
          12
          22
          17
          18
          31
          10.3
          ?12.3
          M4
          M12X1
          YX-112-63-M6
          96
          14
          25
          22
          26
          30
          14.3
          ?16.3
          M6
          M16X1
          YX-112-100-M8
          113
          16
          32
          27
          32
          33
          18.3
          ?20.3
          M8
          M20X1
          YX-124-10-M3
          107
          12
          20
          17
          16
          66
          10.3
          ?12.3
          M3
          M12X1
          YX-124-16-M4
          106
          12
          20
          17
          18
          61
          10.3
          ?12.3
          M4
          M12X1
          YX-124-32-M4
          106
          12
          20
          17
          18
          61
          10.3
          ?12.3
          M4
          M12X1
          YX-124-63-M6
          173
          16
          32
          27
          26
          105
          18.3
          ?20.3
          M6
          M20X1
          YX-124-100-M8
          200
          16
          32
          27
          32
          120
          18.3
          ?20.3
          M8
          M20X1
          YX-122-10-M3
          140
          12
          20
          17
          16
          99
          10.3
          ?12.3
          M3
          M12X1
          YX-122-16-M4
          148
          14
          25
          22
          18
          101
          14.3
          ?16.3
          M4
          M16X1
          YX-122-32-M4
          148
          14
          25
          22
          18
          101
          14.3
          ?16.3
          M4
          M16X1
          YX-122-63-M6
          189
          19
          54
          41
          26
          118
          24.3
          ?27.3
          M6
          M27X1.5
          YX-122-100-M8
          227
          19
          54
          41
          32
          144
          24.3
          ?27.3
          M8
          M27X1.5
          典型插入損耗 Typical insertion Loss （50Ω測試系統，IEC/CISPR NO.17出版物）


          YX-114-10-M3

          YX-124-10-M3
