圓形

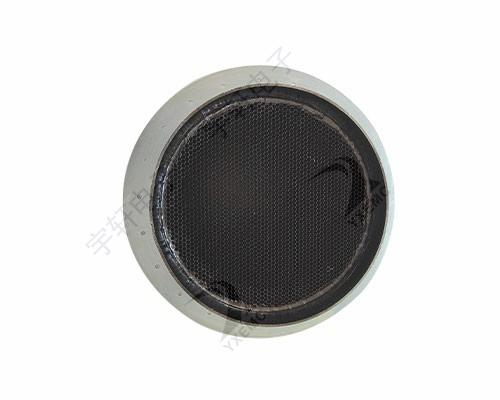

          圓形通風屏蔽波導窗

          圓形

          ● 錫焊式波導窗采用進口鍍錫板沖壓成型
          ● 表面處理后優越的抗腐蝕能力
          產品詳情

          特 點 Features

          ● 錫焊式波導窗采用進口鍍錫板沖壓成型

          Solder waveguide window adopts imported tinplate stamping forming

          ● 表面處理后優越的抗腐蝕能力

          Excellent corrosion resistance after surface treatment


          應 用 Application

          ● 需要同時滿足設備通風散熱和電磁屏蔽、電磁脈沖、防信息泄漏要求的場合

          It is necessary to meet the requirements of ventilation and heat dissipation, electromagnetic shielding, electromagnetic pulse and anti information leakage at the same time

          ● 有通風散熱要求的各種軍用電子設備、移動指揮控制設備、屏蔽室等高等級場合

          All kinds of military electronic equipment, mobile command and control equipment, shielding room and other high-level occasions with ventilation and heat dissipation requirements

          ● 民標測試實驗室、軍標測試實驗室 Civil standard test laboratory and military standard test laboratory


          可選規格 Optional specifications

          ● 標準厚度Standard thickness:12.5mm、25mm、45mm、50mm等
          ● 標準孔徑Standard aperture:2mm、3mm、4mm、5mm、6mm、8mm、10mm等

          ● 表面鍍層Surface Coating:
          導電氧化后,可鍍錫、鍍鎳、鍍鋅、鍍鉻After conductive oxidation, tin, nickel, zinc and chromium can be plated


          ● 法蘭框材質Material of flange frame:

          馬口鐵、不銹鋼、紫銅、黃銅Tinplate, stainless steel, copper, brass


          ● 法蘭框形狀Flange frame shape:

          波導屏蔽通風窗蜂窩狀通風截止波導窗



          EMI屏蔽效能Shielding effectiveness:

          磁場magnetic field

          14KHz≥75dB 150KHz≥100dB

          電場electric field

          200KHz~50MHz≥110dB

          平面波plane wave

          50MHz~1GHz≥110dB

          微波microwave

          1GHz~10GHz≥100dB
          10GHz~18GHz≥90dB

          訂貨說明:形狀、尺寸、邊框結構、邊框上定位孔的距離和數量、安裝方式,鍍層要求可根據提供的設計圖紙進行生產。
